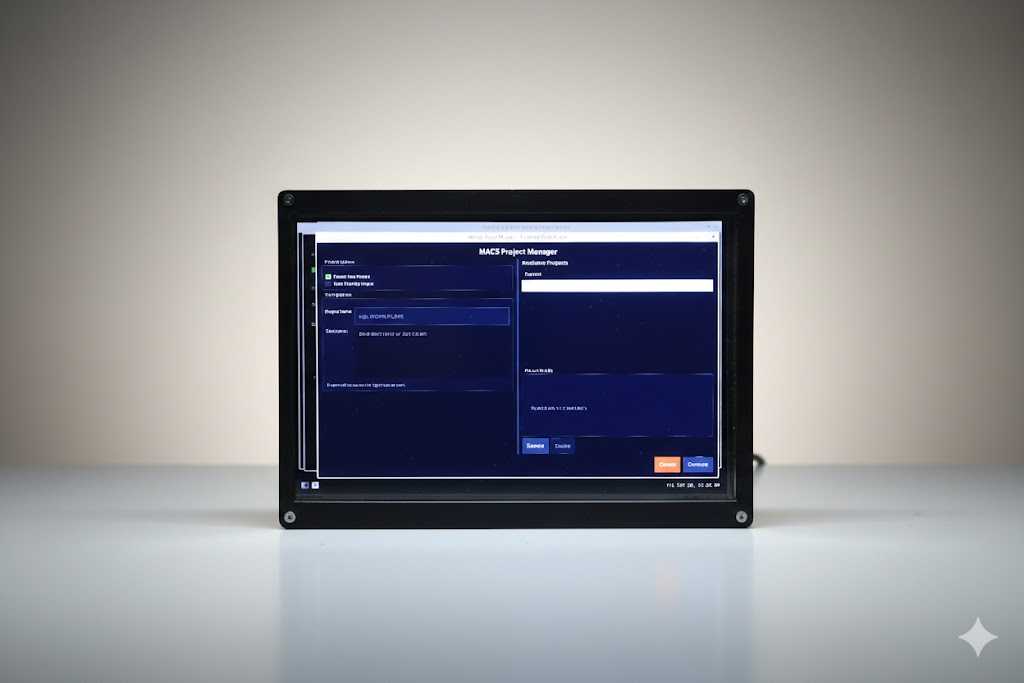

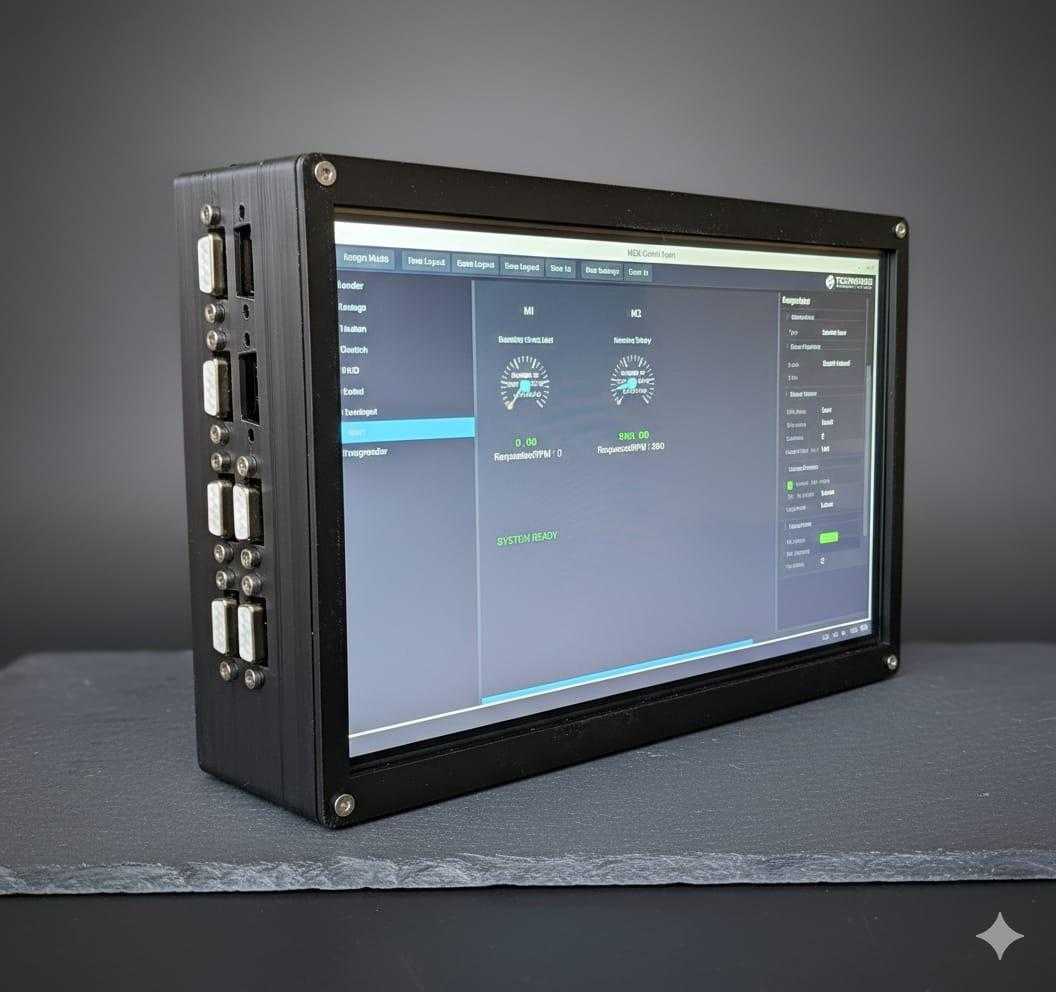

The SparkByte features ARM A72 and up to 10 CAN-FD channels and on-board MCU for real-time critical applications.
Example usage:
- HIL rig for simulating a CAN network.
- Data-logger for CAN networks.
- Industrial HMI
- IOT Gateway
CPU
- 2x Arm® Cortex®-A72
Real-time CPU
- 6x Arm® Cortex®-R5F
High Speed Interfaces
- 1xUSB2.0
- 1xUSB3.0
- 2xGigabit Ethernet
- PCIe
- 802.11 ac/a/b/g/n + BT/BLE 5.2
Temperature range
- -40 – 85 C
RAM
- Max 16GB
- EMMC 8 – 128 GB
Display
- 1920x1080 24-bit Capacitive touch screen
- Displayport
Connectivity
- UART (RS232/485 etc. can be added if requested)
- I2c
- SPI
- Up to 10xCAN-FD
- PWM
